Contact Lens Labeler

0 + Pieces sold in the past 30 days

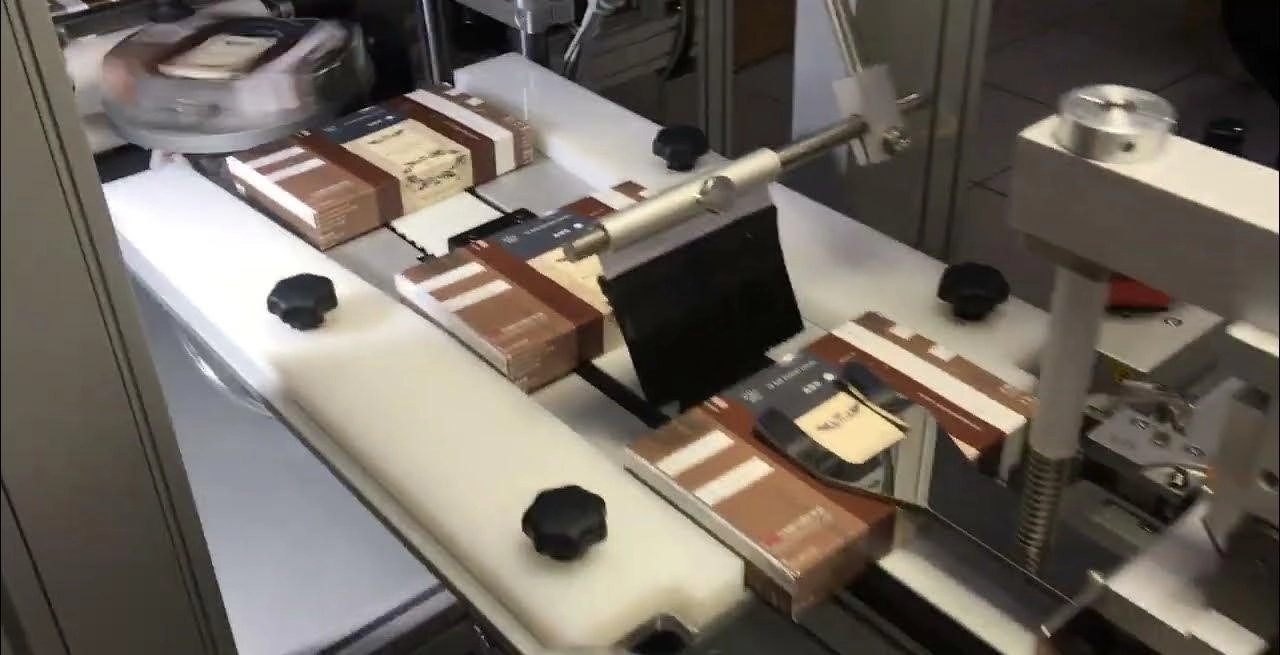

Special labeling application for contact lens packaging boxes, which uses the barcode labeler to instantly print data and attach it to the outer box of contact lenses and for corner sealing at the same time.

DESCRIPTION

Mechanical Features

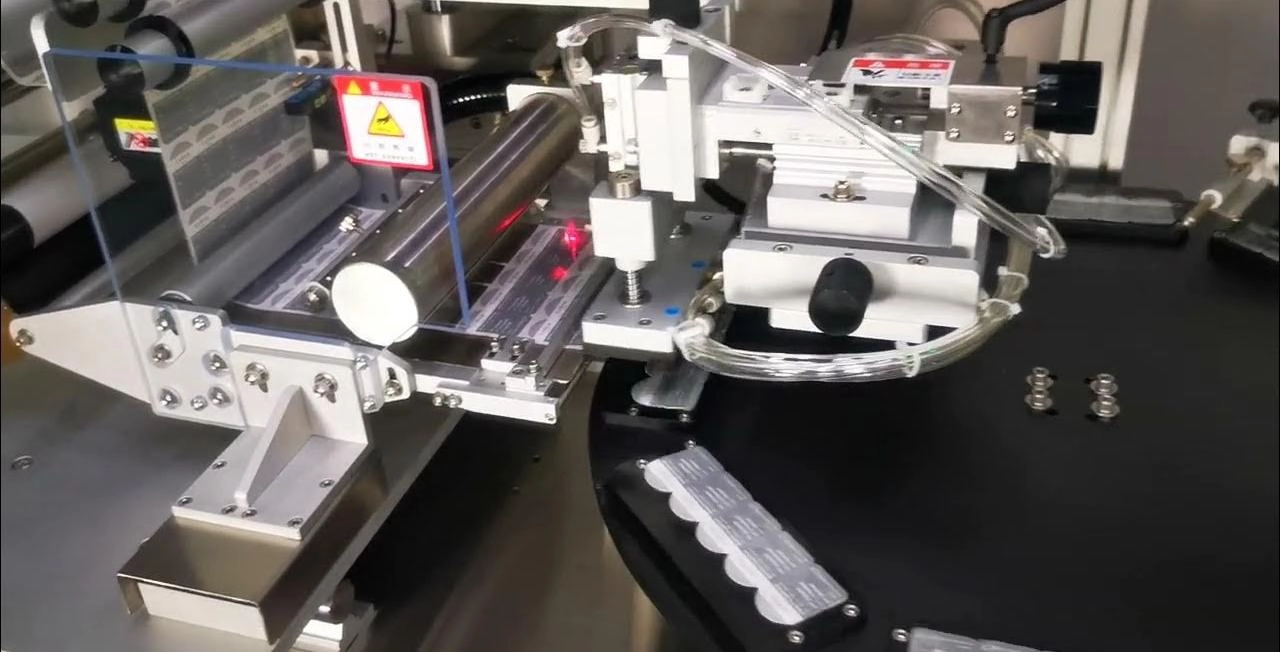

Pick and apply device, higher labeling accuracy and stability.
The two sides of the double-label applicators is used for package box labeling and sealing at the same time.
Adjustable conveying guardrail, flexible use of a variety of labeling product sizes.
By positioning mechanism to ensure labeling accuracy.
The label sensor function can timely reflect the state of missing, missing and broken labels.
The printed data can be connected to the upper computer database through the network.

Features

Standardized and modular design for easy maintenance.
Color touch panel and PLC control system. Easy to learn and operate.

Optional Accessories

barcode reader
CCD inspection

Specification

Model	Contact Lens Labeler
Labeler Line Speed	30 to 50 m/min
Labeling Speed	About 40 Bottles/min
Printing Device	Barcode Printer
Label Roll	300/400mm
Machine Dimension	1500mm(L) × 700mm(W) × 1470mm(H)
Power	AC 220V 50/60Hz Single Phase; 2kW
