Bottom Pick and Place Labeler

0 + Pieces sold in the past 30 days

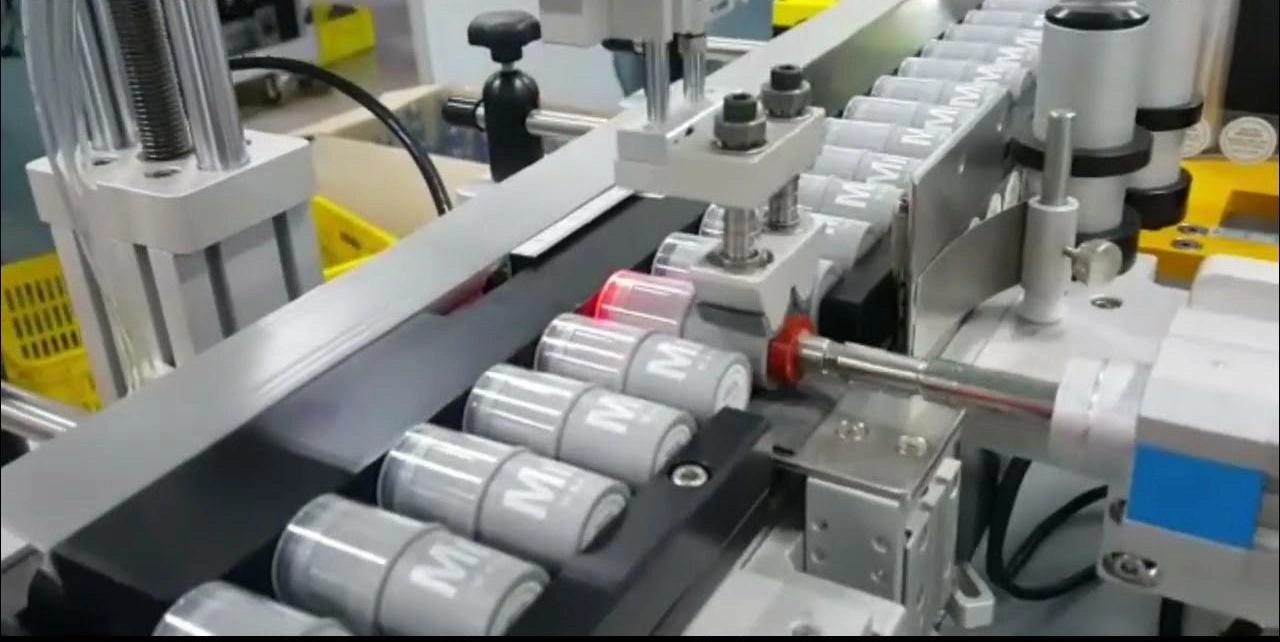

Suitable for precise labeling on the surface of various cylinder containers which is applied to the bottom of pen-shaped containers (lipstick, lip gloss, mascara) in the cosmetic industry labeling.

DESCRIPTION

Features

The adjustable rotating label applicators head can adjust the angle according to the shape of the product for accurate labeling.
The product is positioned by the fixture and then applied labels for better labeling accuracy.
Driven by servo motor, the speed can be automatically matched (linked).
Standardized and modular design for easy maintenance.
Color touch panel and PLC control system. Easy to learn and operate.

Optional Accessories

Input & output turn table
Various printer options (hot stamping, inkjet printer, thermal transfer printer, laser printers)
The labeler can be flexibly configured in IN-LINE / OFF-LINE.

Specification

Model	Bottom Pick and Place Labeler
Labeler Line Speed	30m/min
Conveyor Line Speed	30m/min
Labeling Speed	About 60 Bottle/min
Accuracy	±1mm
Label Width	S(50mm)/ M(100mm) / L(140mm)
Object Size	Max. Ø30mm, L100mm
Label Roll	300mm
Machine Dimension	2400mm(L) × 900mm(W) × 1500mm(H)
Power	AC 220V 50/60Hz Single Phase; 1.5kW
