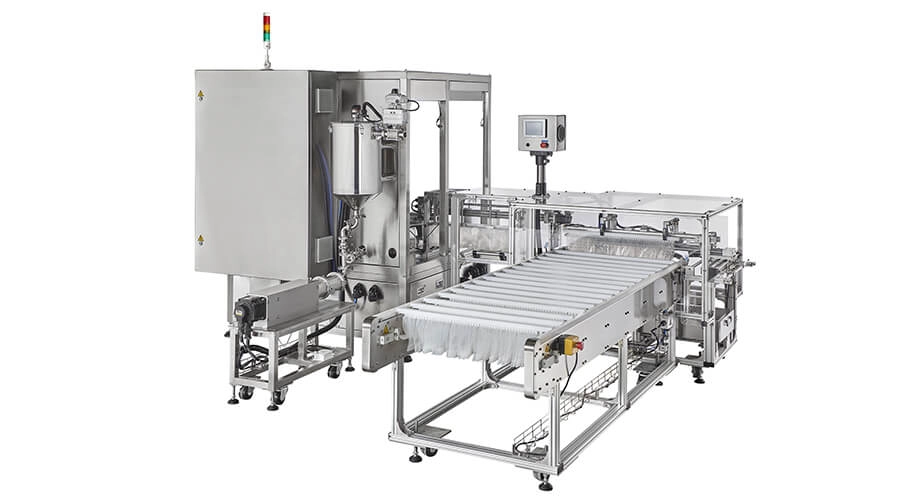

characteristic:
Filling range: 100ml~300ml
Capacity: 40 pieces/minute
Bag size: W. 100 x H. 165mm
The main structure of the machine is stainless steel
PLC control system, with human-machine display interface, easy to operate each setting value
Orbital automatic bagging device
Volumetric filling: quantitative cylinder with servo motor control
The locking head is controlled by a servo motor and the torque can be adjusted
Simple machine design, easy to clean and maintain
Air consumption: 80L/min
Power consumption: 5 Kw

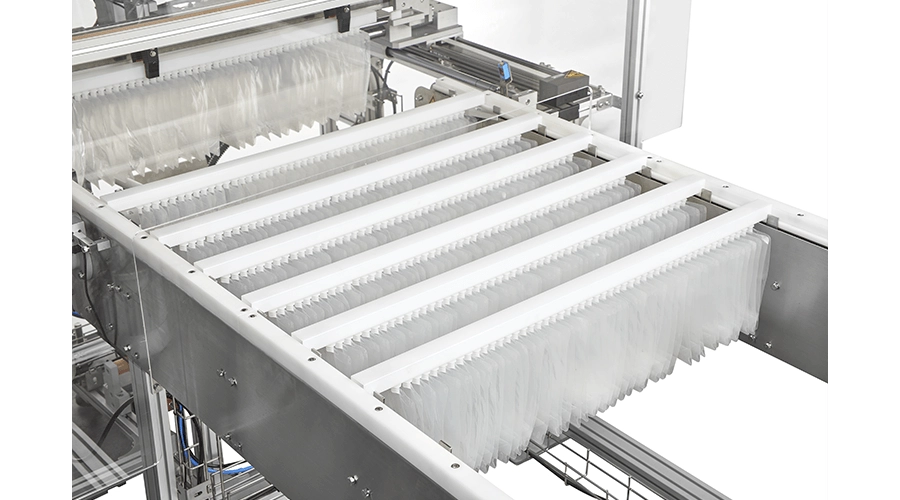

Automatic bag feeding device
The multi-track bag-setting track automatically transfers the bags to the bag-inputting mechanism, and at the same time, pushes the boom into the collecting trough.

filling area
Fill the bag with liquid through the suction nozzle, and the filling tube drops into the nozzle to prevent liquid from splashing. It uses a quantitative cylinder for filling and is controlled by a servo motor. It is suitable for liquids with high and low viscosity and accurate dosage filling.

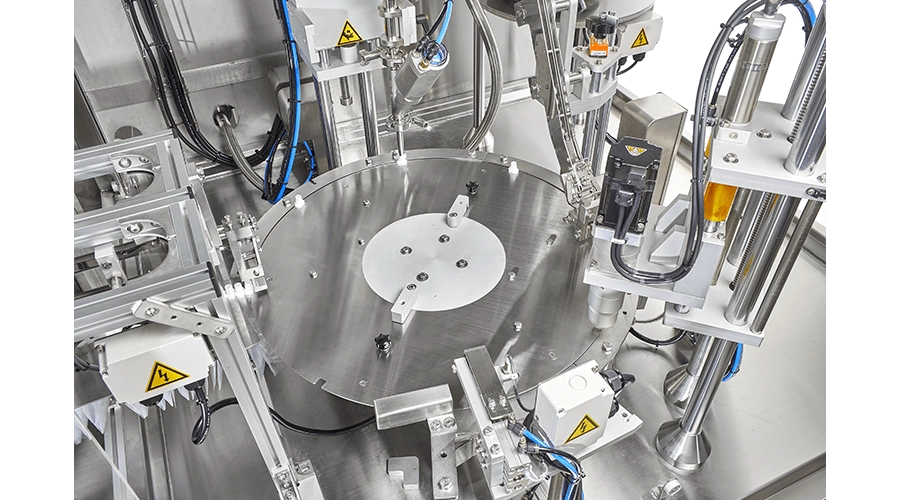

Lock cover area
The cap selection method uses a vibrating barrel to send the cap to the lower cap track, and firmly place the cap on the nozzle, and then lock the cap through the cap locking device. The cap locking head is controlled by a servo motor and the cap locking torque can be adjusted

Finished product bagging area
After filling and locking, the bag will slide down to the discharging track.
