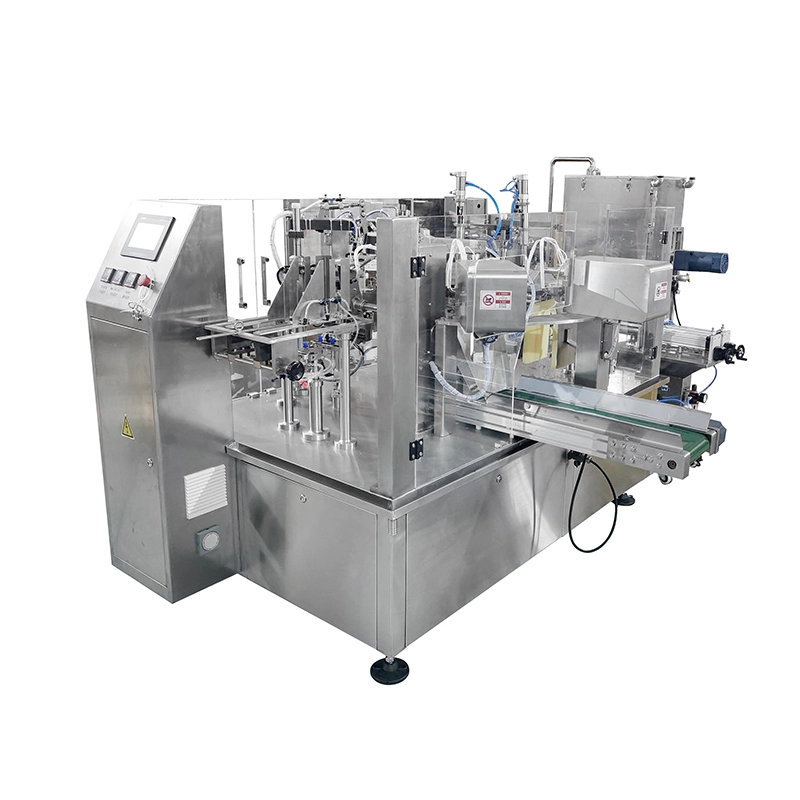

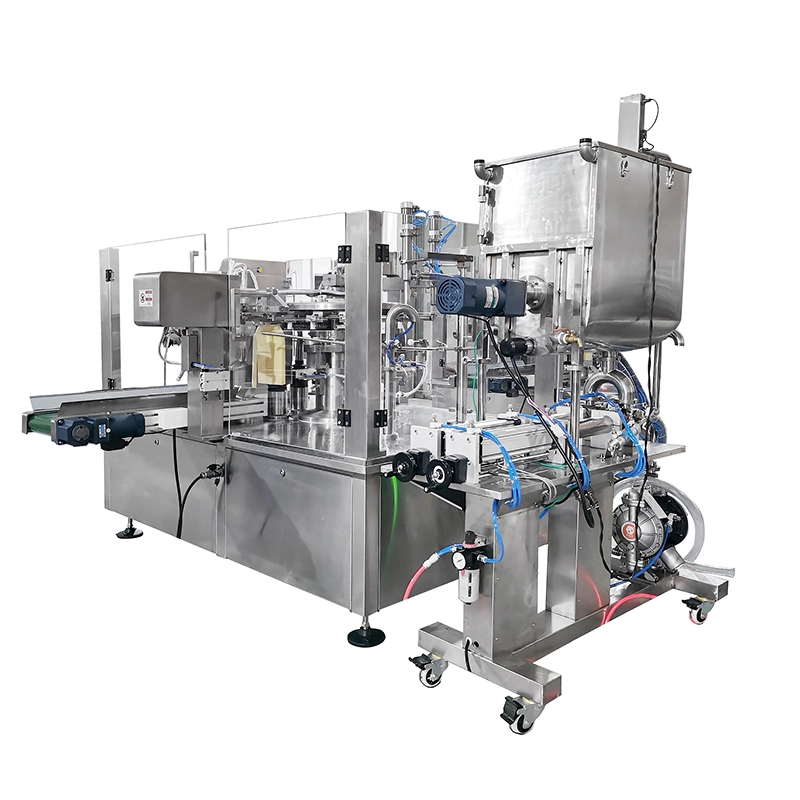

Automatic Liquid Doypack Filling Packaging Machine

0 + Pieces sold in the past 30 days

Automatic liquid filling sealing machine is equiped with liquid pump dosing system, suitable for various kinds of liquid like free flow fluid, semi-liquid, liquid with seeds and so on.

Premade spouted pouch and standard doypack are available.

We are a packaging solution supplier with 20 years of packaging equipment production and design. If you cannot find equipment that meets your requirements on our website, please tell us your packaging requirements.

DESCRIPTION

Stainless steel appearance, beautiful and high-grade, stable operation;

Replace manual packaging, the production efficiency is increased, and the production cost is greatly reduced;

Adopt PLC control, touch screen operation, a wide range of use, set the speed of operation according to production capacity requirements;

Changing the size of the bags quickly and easily which can be adjusted by handle;

Automatic detection function, the pouch can be recycle used if these situation happens: bags can not open or open the bag incomplete, no feeding, no heat sealing;

It can be used in doypack bags, handbags, zipper bags, four-sided bags, three-sided bags, paper bags, M-shaped bags and other composite bags;

It can automatically perform the functions of suction bag, date printing, bag opening, materials filling, bag sealing, finished product output.

Options

1. Doypack pouch

2. Resealable zipper pouch

3. Spouted pouch

4. Pouch with hanging hole

5. Other customized premade pouch

Technical Specification

Model	SF8-220	SF8-250	SF8-300
Equipment material	304 stainless steel
Heat sealing	twice sealing
Packing speed	20-60bags/min	20-50bags/min	20-45bags/min
Pouch dimension	W: 65-200mm L: 65-400mm	W: 70-250mm L: 70-450mm	W: 200-300mm L: 200-450mm
Filling range	5-1500g	10-2000g	100-2500g
Voltage & power	380V, three phase, 50HZ, 5KW
