Automatic High Speed Cartoning Machine200/260/400

0 + Pieces sold in the past 30 days

DESCRIPTION

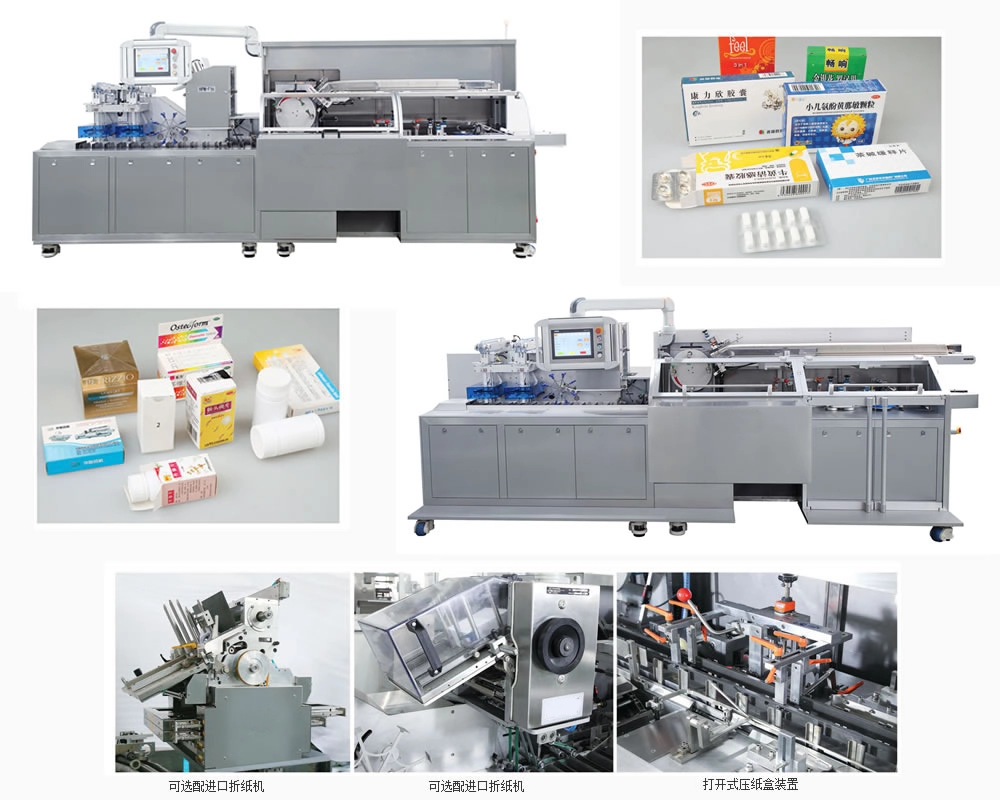

Automatic High Speed Cartoning Machine is intelligent, continuous automatic cartoning equipment, suitable for packing blisters, tubes, ampoules and other related objects into boxes. The highest speed can reach up to 370 cartons/min. It has advantages of high packing efficiency and good quality, and is hi-tech Product with structure of mechanical-electrical integration. This machine can fold leaflets, open cartons, insert blisters into cartons, emboss batch number and then close or seal automatically. It adopts frequency invertor to adjust speed, human machine interface to operate, PLC to control, and photoelectric detector to supervise and control each station so that once there is anything wrong with the machine, it will stop and display the troubles automatically so as to solve them in time. This machine can be used separately, or be linked with other machine to form a Production line. Note: this machine can also equip hot melt glue device to do hot melt glue sealing for box.

Main Technical Parameters：

model	ZHJ-200	ZHJ-260	ZHJ-400
Production capacity (boxes/minute)	≤200	≤260	≤400
Maximum carton size (mm)	170×87×55	170×87×55	170×87×55
Minimum carton size (mm)	65×28×15	65×28×15	65×28×15
carton quality	250-300/m2	250-300/m2	250-300/m2
Maximum manual size (length × width)	320×180	320×180	320×180
Minimum manual size (length × width)	100×100	110×100	90×100
Manual quality	70/m2	70/m2	70/m2
Air consumption	≥2m3/h	≥2m3/h	≥2m3/h
total power	4.5kw	4.5kw	4.5kw
power supply	380V 50HZ	380V 50HZ	380V 50HZ
Dimensions	4400×1500×1800	4400×1500×1800	4400×1500×1800
Weight (kg)	3500	3500	3500
